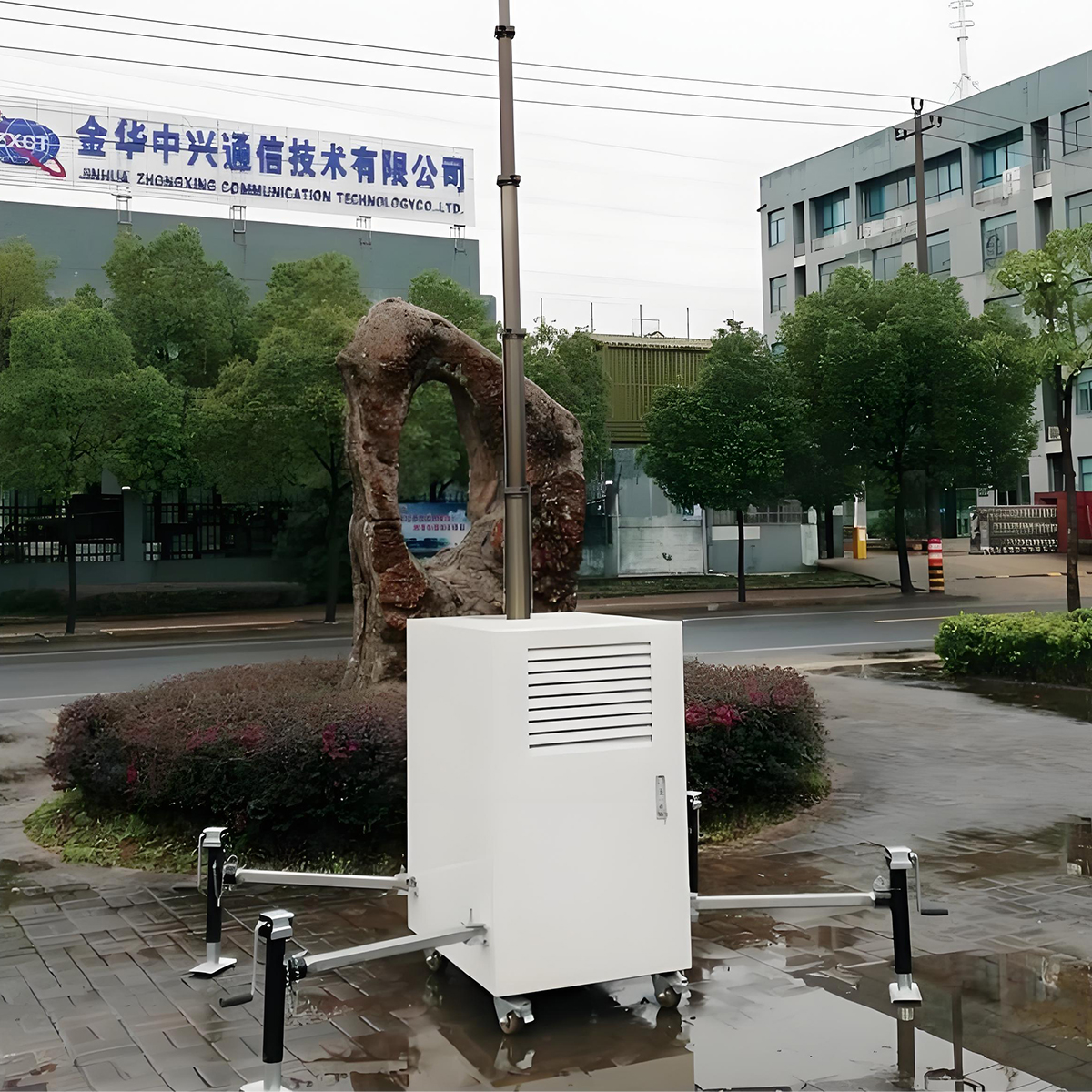

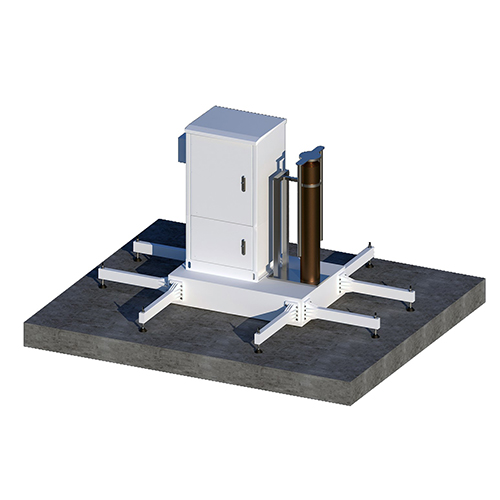

Mini Emergency Communication Integration Cabin

Application scenarios:

1) Areas where the floor area of ​​the equipment room meets the requirements of 1.2m*1.2m or more;

2) Temporary communication support in areas such as large gatherings (concerts/sports games, etc.) and emergencies;

3) Typical deployment scenarios: stadium stands, where the cells are staggered in frequency.

Typical network configuration scheme:

1) Networking mode: RRU3182 + Lampesite networking mode;

2) Antenna mode: 2 pairs of wave speed shaping, directly hanging on the pole;

3) Transmission mode: non-line-of-sight microwave (preferred), fiber optic access;

4) Power distribution scheme: AC/DC sharing (BBU, RRU are DC, RHub, Prru are AC);

5) Natural air cooling temperature control mode, cooling fan power 50W;

6) Backup power supply: 2 sets of 12V/150Ah batteries. The minimum battery life is 300Ah/[(550+540+50)/48]A=12.6h, which can meet the needs of general exhibitions, concerts, marathons and other events.
