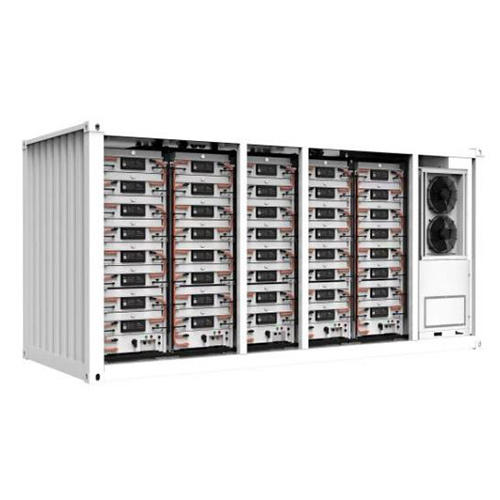

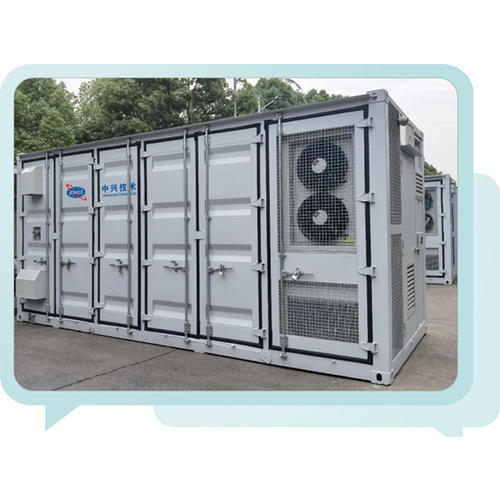

The Energy Storage Shelters for the Energy Industry are specialized enclosures designed to protect and optimize energy storage systems, such as batteries, inverters, and other critical components of energy storage solutions.
Typical configuration of energy storage shelter
| number | item | parameter | |
| 1 | Combination | 10P384S | |
| 2 | Rated capacity (Ah) | 2800 | |
| 3 | Rated energy (MWh) | 3.44 | |
| 4 | Rated voltage (V) | 1228.8 | |
| 5 | Rated charge and discharge rate | 0.5C | |
| 6 | Operating voltage range (V) | 1075.2-1382.4 | |
| 7 | Standard charge and discharge | Charge and discharge current | 0.5C/0.5C |
| Charge and discharge cut-off voltage | 1075.2/1382.4 | ||
| 8 | Standard charge and discharge current | Continuous charge/discharge | 0.5C/0.5C |
| Pulse charge/discharge (30s) | 1C/1C | ||
| 9 | Recommended SOC use window | 10%~90% | |
| 10 | charging operating temperature | -20℃C~45℃ | |
| 11 | Discharge operating temperature | -20℃C~45℃ | |
| 12 | Storage temperature | Short term (within 1 month) | -20℃~45℃ |
| Long term (within 1 year) | 0℃~35℃ | ||
| 13 | Storage humidity | 5%~90% | |
| 14 | Dimensions (length x height x width mm) | 6058*2896*2438 | |
| 15 | Weight (T) | 35 | |
| 16 | Waterproof grade | IP54 | |
| 17 | Cycle times | ≥8000 times | |
| 18 | Charge and discharge efficiency | ≥93% | |
| 19 | Fire protection system | Gas extinguishing + water spray | |
| 20 | Detector type | Temperature, smoke, combustible gas | |
Key Features:
Weather-Resistant Construction: Built with high-strength materials, these shelters are designed to withstand extreme weather conditions, including heat, rain, snow, and wind, providing a secure and stable environment for energy storage equipment.
Climate Control: Equipped with integrated HVAC systems, insulation, and ventilation, the shelters maintain optimal temperature and humidity levels, preventing overheating or freezing of sensitive energy storage components.
Fire Protection: Designed with fire-resistant materials and fire suppression systems, these shelters ensure that energy storage systems, including lithium-ion batteries, are protected from fire risks.
Security Features: These shelters are equipped with advanced security features, including heavy-duty locks, surveillance systems, and optional access control mechanisms to prevent theft or unauthorized access.
Modular Design: The shelters are available in customizable sizes and configurations, allowing them to be easily adapted for a wide range of energy storage systems, from small-scale solar energy systems to large-scale utility storage projects.
Ease of Installation: The modular design allows for easy assembly and rapid deployment, making them ideal for use in both temporary and permanent energy storage projects.
Sustainable and Eco-Friendly: Designed with sustainability in mind, these shelters are made from eco-friendly materials and can be equipped with energy-efficient systems like solar panels for added sustainability.
Applications:
Renewable Energy Projects: Ideal for protecting energy storage systems in solar and wind power installations, ensuring the safe storage of generated energy for later use.
Utility-Scale Energy Storage: Perfect for large-scale energy storage solutions used by utilities to manage grid stability, especially in regions with high renewable energy penetration.
Off-Grid and Remote Applications: Used in remote locations or off-grid systems where energy storage is critical for providing power in isolated areas or during emergencies.
Microgrid Solutions: Protects energy storage systems that are part of microgrids, ensuring reliability and performance in local energy systems.
Industrial and Commercial Use: Suitable for energy storage in commercial buildings, factories, or industrial plants that require backup power or energy management solutions.
FAQ
1. Are these shelters customizable?
Yes, the shelters are modular and customizable to meet the specific needs of different energy storage applications. Custom sizes, layouts, and additional features like fire suppression systems, battery management systems, or solar-powered backup systems can be tailored to the project's requirements.
2. How long does it take to install the shelter?
The modular design allows for quick installation, typically taking just a few days to assemble, depending on the shelter's size and the site's complexity. The shelter can be deployed rapidly, which is ideal for emergency or time-sensitive projects.
3. What security features are included in the shelter?
The shelter includes high-strength locks, optional access control systems (RFID, biometric, or keypad), surveillance cameras, and security lighting to protect valuable energy storage systems from theft or vandalism.
